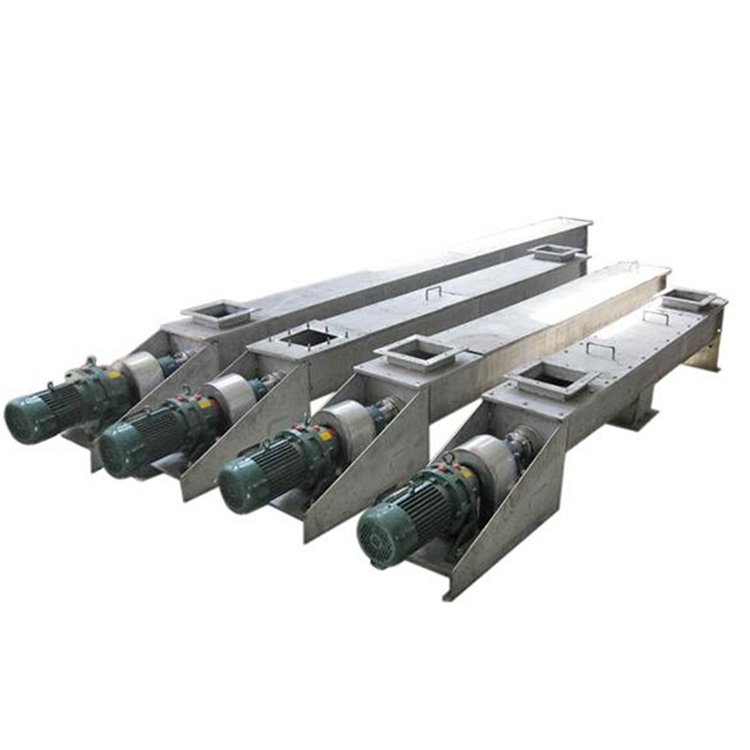

GLS、LSY型高效螺旋輸送機 Screw conveyor
高效螺旋輸送機廣泛地使用在各種工業部門，如建材、電力、化工、冶煉、煤炭、鋁鎂、機械、輕工、糧食及食品行業，適用于水平或小于20度傾角，輸送粉狀、粒狀和小塊狀物料，如水泥、煤粉、糧食、化肥、灰渣、沙子等，物料溫度在200℃以下。國家行業標準JB/T7679。
Screw conveyors are widely used in different industrial sectors such as building material, power, chemical, smelting, coal, aluminum and magnesium, machinery, light industry, grain and food industry. They shall be installed horizontally or at an inclination angle of less than 20℃. Screw conveyors convey powdery materials, granular materials and small block materials such as cement, pulverized coal, grain, chemical fertilizer, ash and sand. The temperature of conveyed materials shall be below 200℃. National industry standard JB/T7679.
| 型號規格Model | 產量 Capacity | 功率Power | 質量Weight |
| m3/h | kw | t | |
| GLS200 | 13.5 | 4 | 4.35 |
| GLS250 | 23.8 | 7.5 | 4.17 |
| GLS315 | 42.3 | 11 | 6.33 |
| GLS400 | 68.2 | 22 | 7.46 |
| GLS500 | 106.6 | 18.5 | 11.79 |
| GLS630 | 151.1 | 37 | 18.52 |
| GLS800 | 216.6 | 55 | 20.22 |
| GLS1000 | 303.2 | 45 | 29.66 |
| GLS1250 | 416.4 | 37 | 34.75 |
| GX150通用 | 4.5 | 1.1 | 2.57 |
| GX200 | 8.5 | 1.5 | 3.39 |
| GX250 | 16.5 | 3 | 4.9 |
| GX300 | 23.5 | 4 | 6.06 |
| GX400 | 41 | 11 | 8.48 |
| GX500 | 79 | 18.5 | 9.7 |
| GX600 | 139 | 37 | 11.2 |
| GX700 | 180 | 55 | |
| LSY160改進型 | 7.8 | 2.2 | 3.81 |
| LSY200 | 13.5 | 4 | 4.35 |
| LSY250 | 23.8 | 5.5 | 4.17 |
| LSY315 | 42.3 | 7.5 | 6.33 |
| LSY400 | 68.2 | 15 | 7.46 |
| LSY500 | 106.6 | 22 | 11.79 |
| LSY630 | 151.1 | 30 | 18.52 |
| LSY800 | 216.6 | 45 | 20.22 |
| LSY1000 | 303.2 | 55 | 29.66 |
| LSY1250 | 416.4 | 75 | 34.75 |
